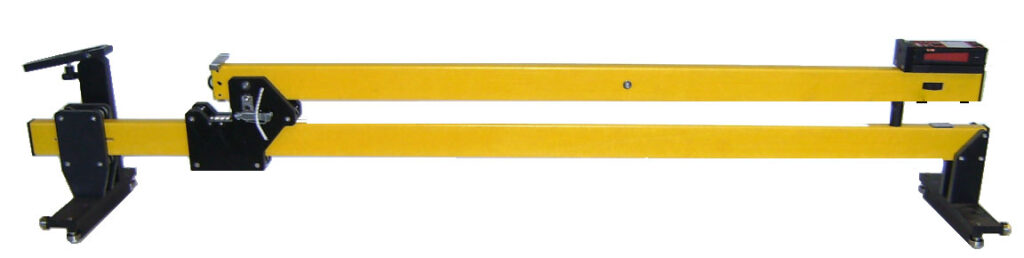

For taking height and stagger measurements of the over head line using a Hilti PD42 measurement laser. The laser is positioned at eye level and features a 90º viewing prism, enabling the operator to see the desired cable and laser location marker at the same time, in all weather conditions, including bright sunshine. The rail head to cable height reading is displayed on an LCD display, the value is compensated for the height offset of the laser, meaning that no on site calculation is required. Cable stagger position is indicated on a scale on the lateral beam of the gauge. The horizontal beam folds down flat to the lateral beam for storage and transport. This gauge is subject to a 12 monthly calibration.

Specification
