Application

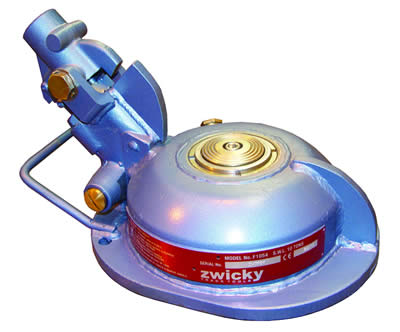

This obstructionless jack is fitted with an overload safety valve and tested to 25% over the rated capacity. The jack is placed under the rail without removal of ballast. Despite its low height of 95mm the jack is capable of a 101mm lift due to its hydraulic telescopic ram.
| Code | Description | Weight |
| 09 002 | Mini Track (Pan) Jack (obstructionless) | 16.5kg |
| Specification Mini Track Jack (Pan Jack) |
| SWL: 10t on head Closed height: 95mm Extended height: 196mm Lifting stroke: 101mm Weight of standard lever: 3.2kg Weight of insulated lever: 2.5kg |
