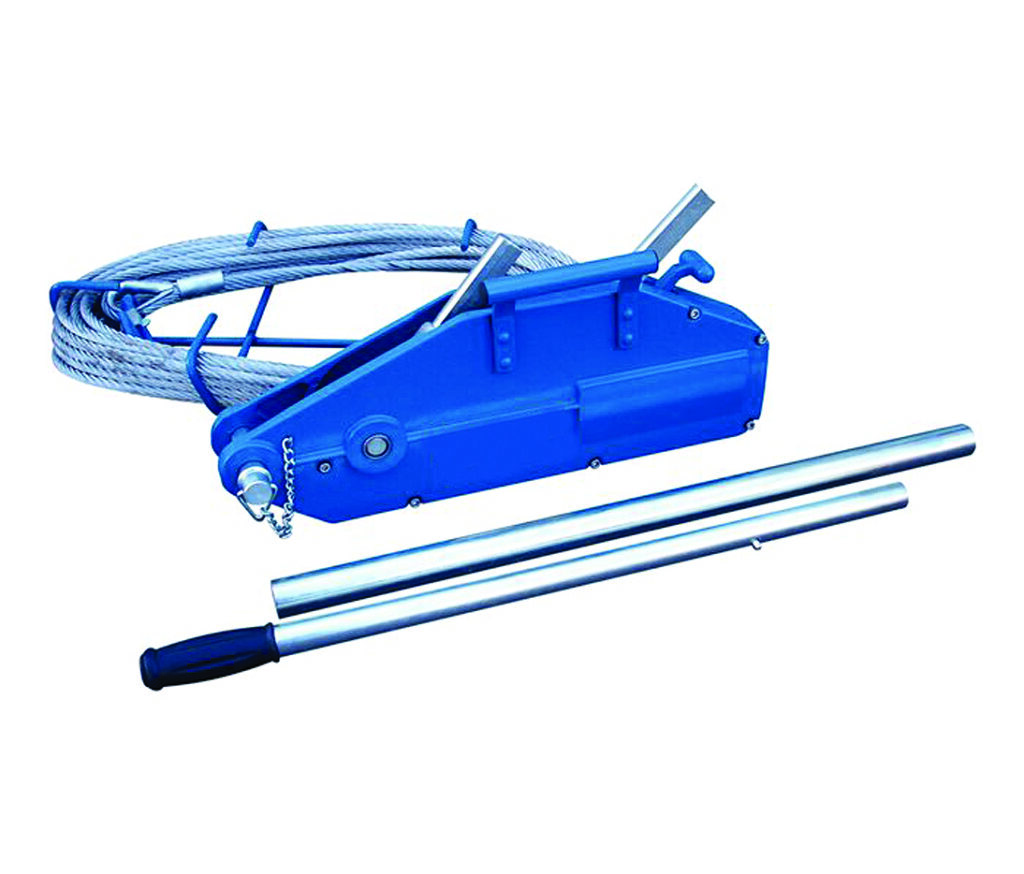

Ideal for use during assembly work, especially at heights, tensioning overhead cables. This machine is subject to a 6 monthly record of thorough examination.
Specification
| Item Code | see table below |
| Make | Tirfor |
| Model | Various (see below) |
| Power Source | Manual |
Essential Accessories:
Wire rope, size depending on application, see table below:
Consumables:
Various shackles and slings available, depending on application see page xx for more details.
| Item Code | Model | WLL | Weight | Rope Diameter | Rope Breaking Strain |
| 55-042 | T508 | 800kg | 6.6kg | 8.3mm | 4000kg |
| 55-043 | T516 | 1600kg | 13.5kg | 11.5mm | 8000kg |
| 55-044 | T532 | 3200kg | 24.0kg | 16.3mm | 1600kg |
| 55-045 | TU8 | 800kg | 8.4kg | 8.3mm | 4000kg |
| 55-046 | TU16 | 1600kg | 20kg | 11.5mm | 8000kg |
| 55-048 | TU32 | 3200kg | 27kg | 16.3mm | 16000kg |
